NuFLEX-i2

Redefine Soldering Efficiency with NuFlex-i2's Advanced Design

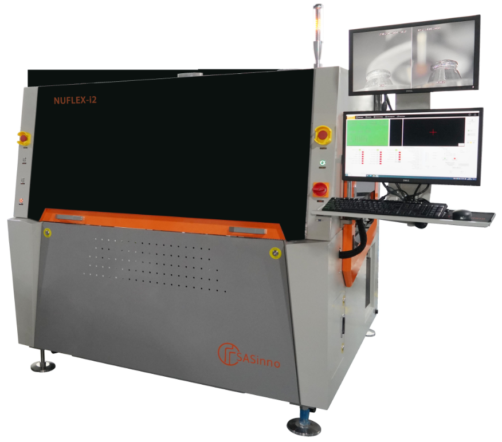

The NuFlex-i2 stands out as the epitome of flexibility in inline soldering technology. This compact machine has features designed for maximum productivity and flexibility in varied production environments. With a standard drop jet fluxer, optional additional fluxer, dual-zone preheating, and two independent solder pots, the NuFlex-i2 ensures superior solder quality and process control. Its innovative 4-axis servo drive and shared X/Y motion table for the solder pot and fluxer further enhance its precision and versatility.

NuFlex-i2: A Symphony of Advanced Soldering Features

The NuFlex-i2 is engineered with cutting-edge features designed to take your soldering process to the next level:

  • Standard drop jet fluxer with an option for two
  • Integrated bottom IR and top convection preheater
  • Two solder pots with independent Z-axes control
  • 4-axis servo drive ensuring precise and smooth motion control
  • Shared X/Y motion table for the solder pot and fluxer, maximizing space and efficiency
  • Comprehensive all-in-one solution for flux application, preheating, and soldering
  • Windows 10 operating system for reliable and user-friendly operation
  • Standard with wave height calibration and a real-time soldering process monitor for consistent quality

NuFLEX-i2 Questions and Answers

What positioning accuracy does the NuFlex-i2 achieve?

±0.05mm via X/Y/Z1/Z2 servo motor axes. The 4-axis servo drive maximizes space efficiency while maintaining precision for tight-pitch pads.

What preheating configuration does the NuFlex-i2 use?

Standard top and bottom IR preheating. The bottom zone stays in a retracted standby position when not in use to maximize energy savings.

What solder pot configuration does the NuFlex-i2 include?

Two stations with 35 kg total capacity (15 kg per pot) and independent Z-axis control. Max heater temperature is 350°C with PID control and a ~40-minute heat-up time.

What are the NuFlex-i2 N2 and exhaust requirements?

Consumption: 4 m³/h; Purity: >99.99%; Exhaust: 800 m³/h . Requirements are compatible with smaller SelMate N2 generator models.

What is included in the NuFlex-i2 software package?

Windows 10 platform featuring point-and-click programming, wave height calibration, and real-time process monitoring of speed, height, and dwell time.

How does the NuFlex-i2's two-section conveyor add flexibility?

Single long PCB mode supports boards up to 508×508mm; dual short PCB mode processes two smaller boards simultaneously to double throughput without mechanical reconfiguration.

How does the NuFlex-i2 advanced preheat zone save energy?

It activates only half the zone length based on the actual PCB length. The bottom preheating zone stays in standby and only moves forward when a board is loaded, reducing energy consumption .

Is the NuFlex-i2 right for low-volume prototype production?

Yes. Setup time is ~10 minutes by drawing paths on scanned images, making it economical for prototype runs and high-mix production.

What makes the NuFlex-i2 unique compared to other selective soldering machines?

It is the most space-efficient inline machine with a footprint of only 1,880mm (L) × 1,753mm (W) and a weight of 900 kg. Despite its size, it features 4-axis servo drive and two independent solder pots.

What NuFlex-i2 flux system is included, and is a second fluxer available?

Standard: 1 German-made 1L drop jet fluxer. Optional: A second fluxer set can be added for dual flux type application or throughput enhancement.
