Ultra-i2
Maximal Features with Dual Solder pots in a Small Footprint with the Ultra-i2

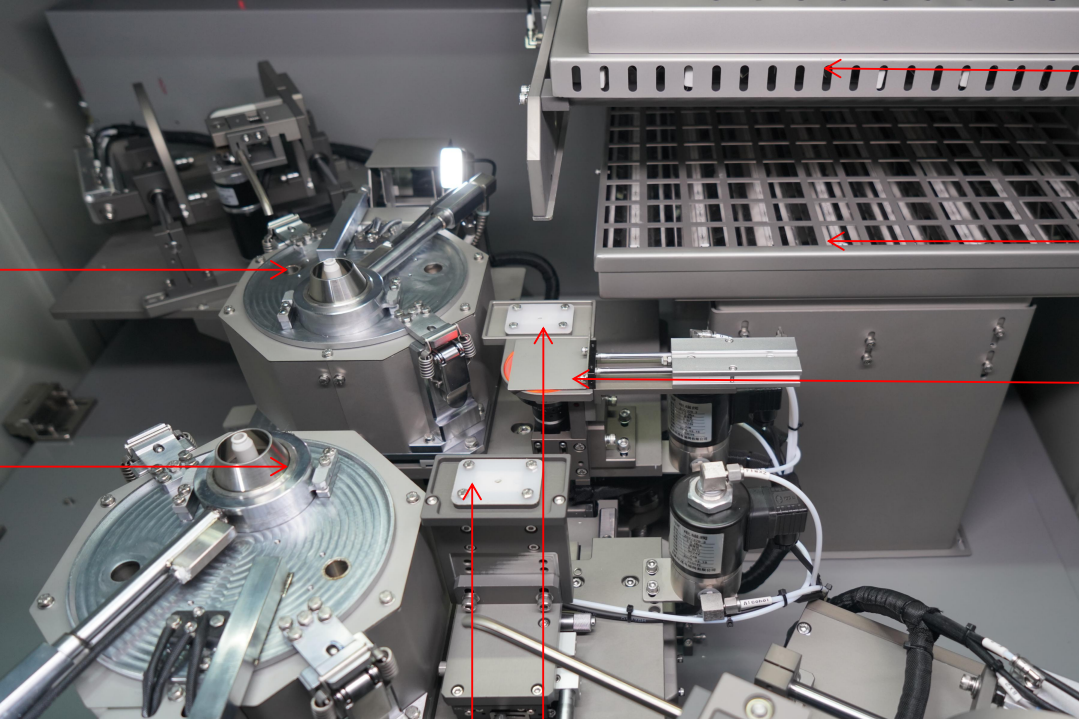

The Ultra-i2 comes standard with features including (2) drop jet spray fluxers, top and bottom preheat, inline N2 heat, (2) electromagnetic pumps, (2) live solder cameras, and fiducial camera, with the capability of processing large boards. The Ultra-i2 also has the option of a solder pot trolley and rack system for easily changing between alloys.
Ultra-i2 Selective Soldering
Ultra-i2 Core Features
- (2) Drop Jet Spray Fluxers (Standard)
- Top Preheat (Standard)
- Bottom Preheat (Standard)
- (2) Inline N2 Heater (Standard)
- (2) Electromagnetic Pumps (Standard)
- Fiducial Camera (Standard)
- (2) Live Solder View Cameras (Standard)
- Wave Height Control (Standard)
- Multi Axis Servo Drive System (Standard)
- Windows 11 OS
- Warp Detection and Adjustment (Optional)
- Wire Feeder (Optional)
- Trolley System to Remove Solder Pot (Optional)
- Offline Rack for Powered Operation of Solder Pot (Optional)
Ultra-i2 Specifications:
Operating Power/Max Power:
6KW/21KW
PCB Dimensions:
50mm x 50mm Minimum/460mm x 510mm Maximum (Standard)
Enlarge PCB Dimensions:
50mm x 50mm Minimum/560mm x 610mm Maximum (Optional)
PCB Top Clearance:
65mm
PCB Bottom Clearance:
32mm
Max PCB and Carrier Load:
20 Kg/44 Lbs.
Machine Dimensions:
W1420mm x D1660mm x H1512mm
Net Weight:
926 Kg/2042 Lbs.
Input Power Supply:
220V 3PH 50/60Hz 80 Amps
Air Supply:
3 - 5 Bar/45 - 75 PSI
Exhaust Required:
400M3/h or 250CFM
Exhaust Port:
150mm Diameter
PC System:
Industrial PC with Windows 11 OS
Typical Programing Time:
10 Minutes
Program Method:
Draw Flux/Solder Path on Scanned Image of Board or Gerber or Onboard Camera Teaching
Safety:
Machine Safety Curtain
PCB Alignment:
Fiducial Camera (Standard)
Camera Function:
Fiducial Teaching and Program Teaching
Axis of Motion:
X, Y, and Z by Servo Motors
Motion Control Hardware:
Ball Screw and Linear Guide Rail
Position Accuracy:
+/- 0.05mm
Motion Table Limit Alarm:
Yes
Flux Nozzle Type:
Drop Jet Fluxer (2 Sets)
Flux Capacity:
1L x 2 Sets
Flux Tank:
Constant Pressure Tank
Cleaning Capacity:
1L x 2 Sets
Cleaning Solvent Level Alarm:
Yes
Bottom Preheater:
7Kw (Standard)
Top Preheater:
3.5Kw (Standard)
Solder Pot Quantity:
2 Electromagnetic Pumps (Standard)
Solder Pot Capacity:
20Kgs/44 Lbs. (Total for 2 Pots)
Solder Temperature Control:
PID
Heat-Up Time:
About 40 Minutes
Pre-Melt Solder:
Solder Timer in Software (Standard)
Max Temperature:
380 C
Solder Pot Heater:
2.4Kw
Temperature Alarm:
(Standard)
Temperature Auto Calibration:
(Standard)
N2 Flow Monitoring:
(Standard)
N2 Purity Monitoring:
(Optional)
Solder Pot Quick Exchange Trolley:
(Optional)
Solder Pot Docking Rack:
(Optional with Prewarm Function)
Mini Wave Nozzles (Standard):
4mm, 6mm, 8mm, 10mm, 12mm Diameter (with Machine)
Mini Wave Nozzles (Available):
2mm - 25mm (Available) Special Customized Sizes Available
Nozzle Material:
Proprietary Alloy
N2 Heater Inline:
(Standard)
N2 Temp PID Control Range:
25 - 250 C
N2 Consumption Per Nozzle:
1.5M3/h
Required N2 Purity:
>99.99%
