DA-65MP
Automatically verify parts present, absents, and polarity before they enter the Wave Solder with the DA-65MP
Save time and resources by Automatically Verifying the Presents, Absents, and Polarity of THT inserted parts before they enter the Wave Solder machine.
Core Features of the DA-65MP
The DA-65MP reduces rework and streamlines productivity by verifying the proper insertion of components before Wave Solder.
- 65 Megapixel, Color CCD with 60 micron Resolution

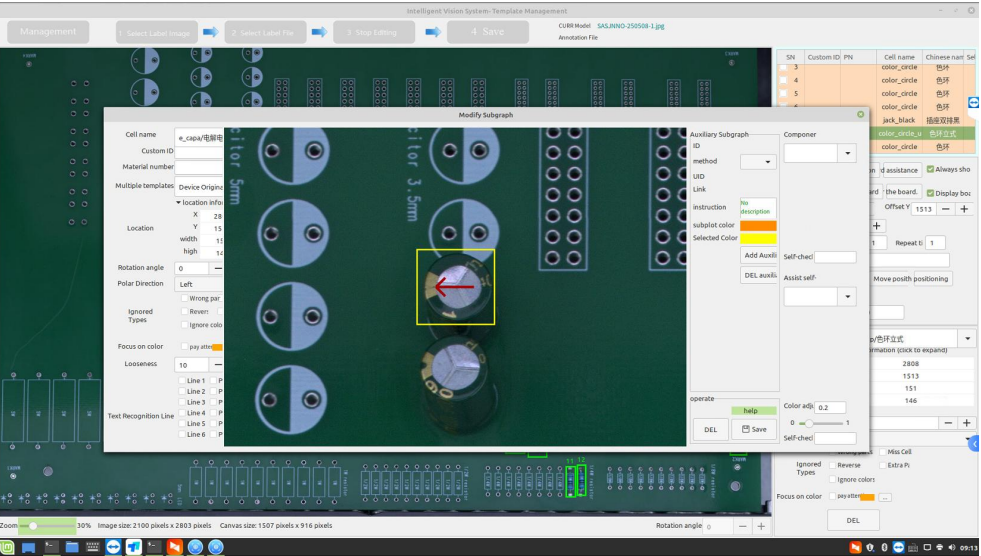

- Simple and Easy GUI for Programming
- Adjust detection parameters quickly

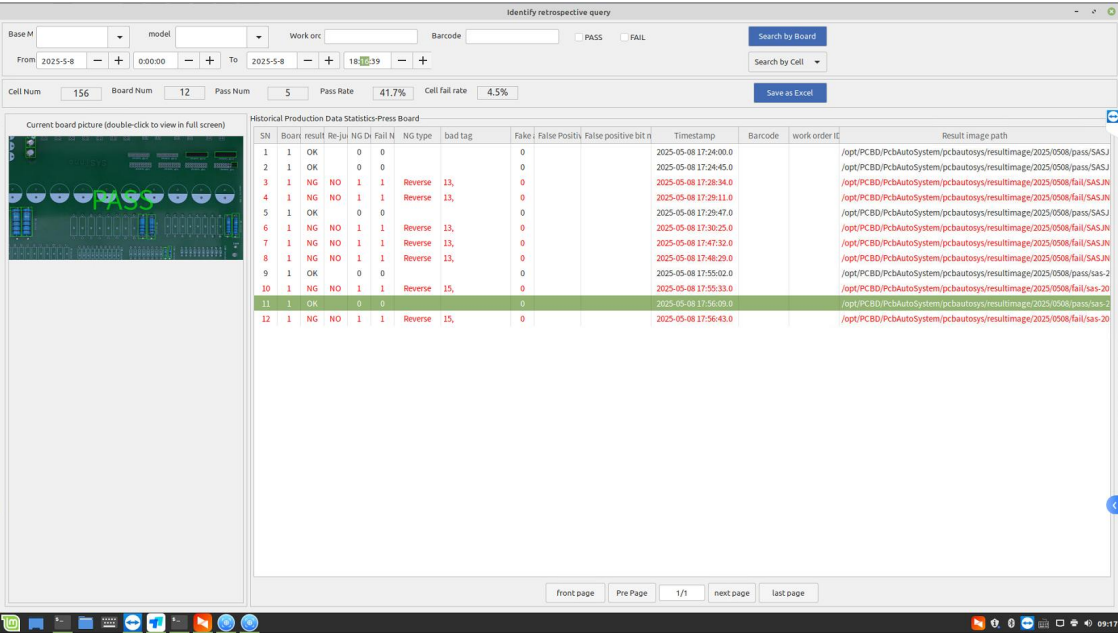

- Easy export of Statistical Data
- Detects Wrong, Missing, Skewed, and Reversed Components
- Inline System with 900mm conveyor height
Camera:
65 Megapixel, Color CCD, 60micron Resolution
Light Source:
Flat White LED Light
Detection:
Wrong, Missing, Reversed, Skewed, and Redundant Components
Minimum Component Size:
3mm x 3mm
Detectable PCB Size (Max):
L390mm x 510mm (single Inspection)/L510mm x W510mm (Inspect twice)
Computer Operating System:
Linux
Machine Dimensions:
W800mm x L1130mm x H1850mm
Weight:
300Kg/661Lbs.
Power Supply:
220VAC Single Phase
Power:
1200W
FOV:
100~200ms/FOV
Rail Adjustment:
Automatic Width Adjustment
Rail Direction:
Left to Right
Rail Height:
900mm +/-20mm
Operating Temperature:
5~45 degrees C
