IIS-120
Intelligent Insertion Station
The IIS-120 Intelligent Insertion Station will project the shape and size of the component onto the PCB to highlight to the operator proper insertion and minimizing risk.

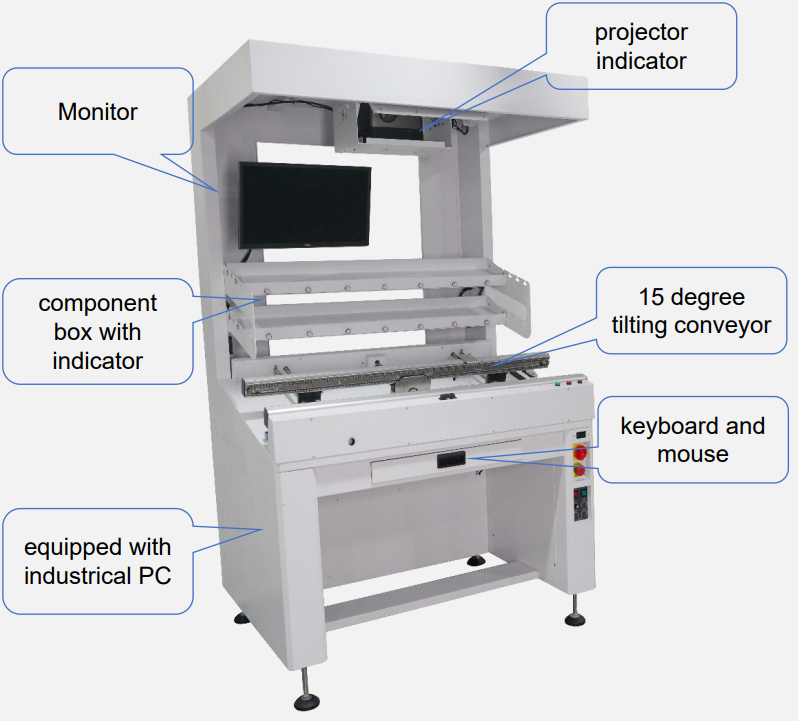

Explore the IIS-120 Intelligent Insertion Station
Minimize Risk and Maximize through put using the IIS-120 Intelligent Insertion Station
- Projector Indicator
- Pick Light Bins
- 15 degree Angle conveyor for ergonomics
- Windows Based PC
- Easy GUI Interface
- Reduce Hardcopy Paper
- Minimize improper insertion of components
Indicator:
Projection
Indicating Light Spot Accuracy:
+/-0.2mm
Range of the Laser Indicating Light Spot:
L530mm x 460mm
Conveying Height:
920mm +/-30mm (or Customized)
Conveying Direction:
Left to Right
Conveyor Angle:
15 Degrees Tilt
Component Box:
14 Pieces with light indicator
Power Supply:
120/220VAC 1.5KW
Air Supply:
0.4-0.6Mpa/60-90PSI
Operating System:
Windows 10
