iWA345/iWA345TN
Increase Productivity and Reduce Maintenance with the iiWA345/WA345TN
Discover the next level of wave soldering with the iWA345TN, featuring a sleek new design and advanced control systems for safe, efficient operations. This machine offers a simple interface and intelligent features like a SMEMA height input conveyor, reducing manual workload. Its high-quality sprayer ensures perfect flux atomization, and the innovative rail support minimizes PCB deformation during soldering.

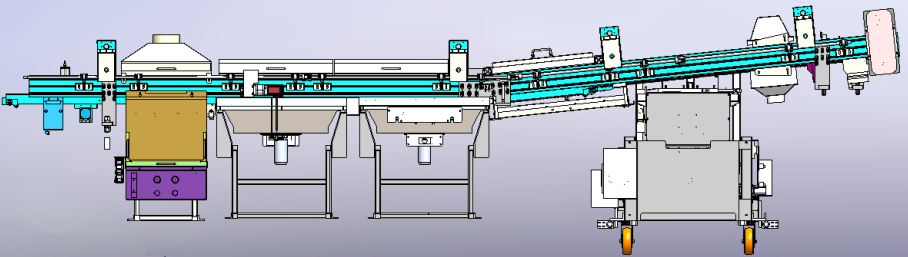

Explore the all new iWA345/iWA345TN Wave Solder
Featuring a sleek design and advanced functionality, the iWA345TN redefines efficient soldering. Its comprehensive control features and automatic systems optimize your soldering operations synergistically.
- New industrial design for aesthetic and functional superiority.
- User Friendly GUI Interface via Windows PC
- Selectable Spray Fluxer for Flux Savings with Pallets/Fixtures (Standard)
- SMEMA Height Conveyor Entrance with Level Conveyor Transition through Preheat
- State-of-the-Art Conveyor system with Segmented Pin Chain and Finger Combination
- Easy Maintenance Platform
- Dual Wave (Standard)
- Wave Height Calibration for Consistency (Optional)
- N2 Capabilities for Long or Short Tunnels (Optional)
- Heater Monitoring System for Preheaters and Solder Pot (Optional)
PCB Width:
50mm - 450mm
PCB Length:
120mm - 600mm
PCB Process Edge:
>5mm
PCB Clearance:
Top 135mm/Bottom 15mm
Conveyor Entrance Height:
900mm +/-20mm
Conveyor Soldering Angle:
6 Degrees
Conveyor Speed:
500~1800mm/min
Conveyor Motor:
Servo Motors
Speed Setting Mode:
Software Setting
Conveyor Mode:
Pin Chain + V Finger
Pin Conveyor Cleaning:
Brush & IPA or Chemical
Finger Conveyor Cleaning:
Brush & IPA or Chemical
Board Drop Alarm Function:
Standard
Auto Width Conveyor Adjustment:
Optional
Conveyor SMEMA:
Standard
Spray Section:
Internal
Flux Nozzle:
ST-6 Lumina (Standard) Ultrasonic (Optional)
Nozzle Axis Drive:
Servo Motor
Spray Mode:
Selective
Flux Adding:
Automatic with SMC Pump
Flux Drain:
Auto
Flux Nozzle Auto Clean:
Standard
Flux Consumption Statistics:
Standard
Needle Valve Pressure:
0.2Mpa ~ 0.3Mpa
Atomization Pressure:
0.1Mpa ~ 0.2Mpa
Spray Air Consumption:
1 - 7.2M3/hour
Air Knife After Fluxing:
Standard
Flux Quantity for each Board:
Optional
2nd Flux Nozzle:
Optional
Preheat Zone Number:
(3) Bottom + (1) Top Standard (2) Additional Top Optional
Preheat Configuration:
IR and Hot Air Convection Available
Preheater Zone Length:
2300mm
Preheat Temperature Control Mode:
PID+SSR
Control Accuracy:
+/-3 degrees C
Preheater Temperature Rise Time:
<20 minutes
Hot Air Zone Power:
6Kw/Zone
IR Zone Power:
6Kw/Zone
Heater Condition Checking:
Optional
Solder Pot/Tunnel/Nozzle Material:
Full Titanium
Pump Mechanism:
Mechanical Pump
Solder Pot Heater Power:
13.5Kw
Solder Pot Capacity:
600kgs/1323Lbs.
Max Temperature of Solder Pot:
320 degrees C
Temperature Control Method:
PID+SSR
Solder Pot Temperature Control Accuracy:
+/-2 degrees C
Wave Driving Power:
High Temperature Motor
Wave Height Control:
Software Controlled
Wave Height:
0-15mm
Solder Pot Warm Up Time:
120 minutes
Solder Pot In/Out:
Pendant Controlled Motor Drive
Solder Pot Up/Down:
Pendant Controlled Motor Drive
Solder Pot Trolley:
Trolley to Remove Solder Pot from the Machine
Solder Pot Trolley with Pre Warm Function:
Optional
Solder Bar Feeder:
Optional
Solder Consumptions Statics:
Standard
Board Cooling After Wave:
Standard 220V 45W with Bottom Side Air Outlet
Exhaust Blowers (2):
Included Standard
Exhaust Volume:
15m3/minute x 2 Ports
Exhaust Port Diameter:
200mm
Exhaust Flow Low Alarm:
Optional
N2 Consumption:
25m3/h if configured with Optional N2 Tunnel
N2 Pressure Source Requirement:
0.5~0.8MPa if configured with Optional N2 Tunnel
Required O2 PPM in N2 Source:
<10PPM if configured with Optional N2 Tunnel
N2 Flow Meter:
Included if configured with Optional N2 Tunnel
O2 Analyzer:
Optional if configured with Optional N2 Tunnel
N2 Consumption at Pot Level N2:
20m3/hour if configured with Optional Pot Level N2
Required N2 Pressure at Pot Level N2:
0.5~0.8MPa if configured with Optional Pot Level N2
Required O2 PPM in N2 Source:
<10PPM if configured with Optional Pot Level N2
N2 Flow Meter:
Included if configured with Optional Pot Level N2
N2 Inline Heater:
Optional if configured with Optional Pot Level N2
Barcode Scanner:
Optional
Door Open Alarm:
Standard
Auto Pre-Warm Function:
Standard
Auto Pre-Stop Function:
Standard
Power Consumption Statistics:
Standard
Windows OS:
Windows 11
Power Supply:
3ph 220VAC 60Hz
Total Power:
42Kw
Operating Power:
<12KW
Control Mode:
PC+PLC
Timer On & Off:
Software Setting
Machine Dimensions:
L4980mm x W1585mm x H1762mm
Conveyor Direction:
Left to Right Standard/Right to Left Optional
Air Requirement:
0.4 - 0.6MPa/60 - 90PPSI
Net Weight:
3000Kgs/6614Lbs.
